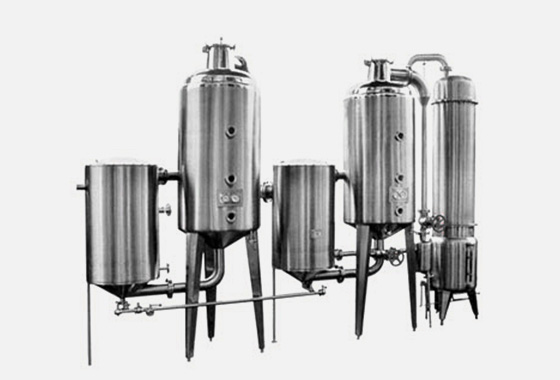

Double effect energy-saving evaporator

Product Description
The concentrator adopts external heating natural circulation type and negative pressure evaporation mode, with fast evaporation speed, significant concentration ratio, up to 1.4 (general Chinese medicine extract). The materials are concentrated in the sealed foam state, which is not easy to run off and free of pollution. And the advantages of easy cleaning.
This concentrator adopts two effect evaporation at the same time, and the secondary steam is utilized, which not only saves boiler investment, but also saves energy consumption. Compared with other concentrators, the energy consumption is reduced by 50%, which is in line with Green gross domestic product.
The contact area between this concentrator and the material is made of SUS304 stainless steel, and the evaporator is equipped with a universal cleaning ball, which meets the hygiene requirements for pharmaceutical food and meets the pharmacopoeia level GMP standard.
The concentrator is suitable for the concentration of liquid materials such as Chinese and Western medicine, honey, syrup, glucose, starch, monosodium glutamate, food, dairy products, fine chemicals, etc., especially suitable for low-temperature vacuum concentration of thermosensitive substances.
technical parameter

 Note: In addition to the specifications of the table series, it can also be designed separately according to customer requirements.
