Reaction kettle

Time：2021-5-22 Click：479

Product Description

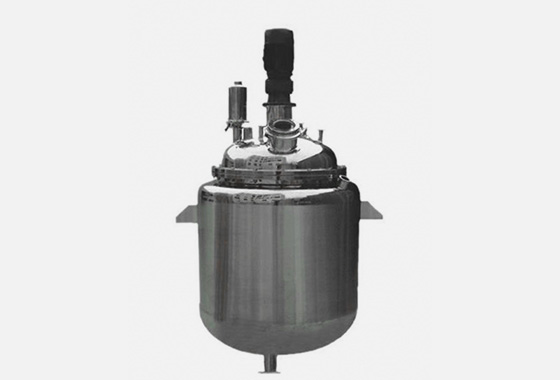

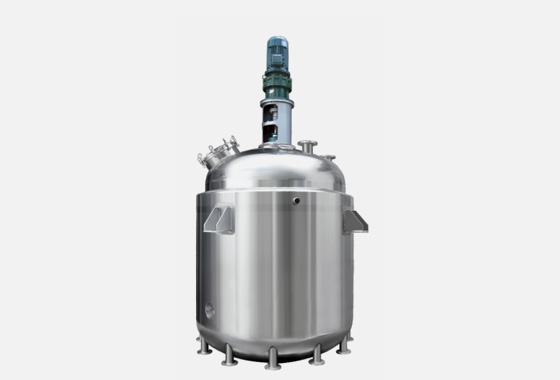

The reaction kettle is an essential equipment in the pharmaceutical, chemical and other industries. The equipment is made of SUS304 or SUS316 and has a certain pressure resistance. It can polymerize some polymer substances at a certain temperature, pressure, and time to produce products with special functions. The equipment is divided into two methods: steam heating and thermal cycling heating.
technical parameter

型号	*FY-200*	*FY-300*	*FY-500*	*FY-800*	*FY-1000*	*FY-1000*
容积	200L	300L	500L	700L	1000L	2000 L
设计压力Mpa	0.3	0.3	0.3	0.3	0.3	0.3
工作压力Mpa	0.25	0.25	0.25	0.25	0.25	0.25
设计温度℃	143	143	143	143	143	143
工作温度℃	138	138	138	138	138	138
换热面积M²	1.3	2.1	2.1	3.8	4	7.3
转速r/min	85	63	41	63	41	41

Note: In addition to the specifications of the table series, it can also be designed separately according to customer requirements.
