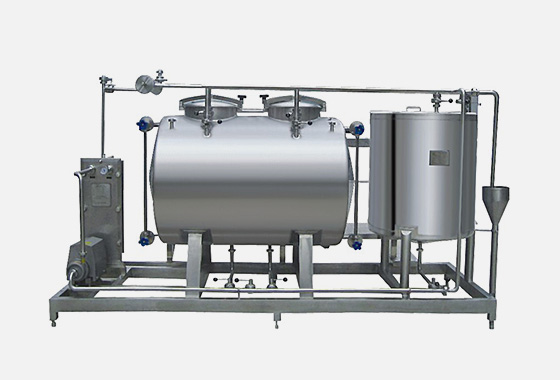

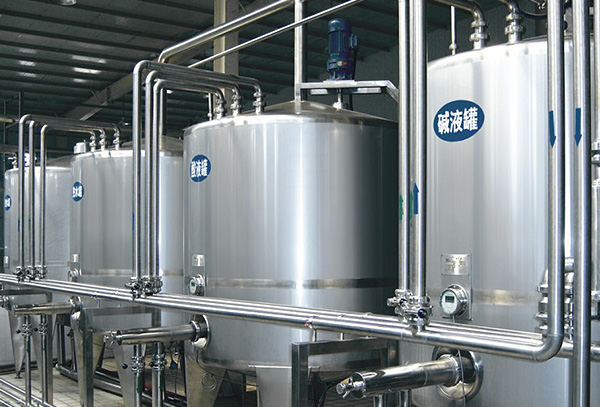

Split CIP system

Technical description:
Flexible and versatile:
The system can perform separate processes such as acid washing, alkali washing, hot water washing, etc., and can also develop specific cleaning programs for fully automatic cleaning as needed; Not only can it effectively clean the equipment, but it can also control microbial growth; At the same time, semi-automatic and fully automatic control systems can be configured according to customer requirements.
Safe and reliable:
Concentrated acid and alkali solution are carried out in buried concentrated acid and alkali tanks; The liquid level in the tank is automatically controlled and equipped with an overflow protection system; The unique discharge port structure can prevent the precipitation and crystallization of cleaning solution from blocking the pipeline.
Economical and efficient:
Compared with manual cleaning, it greatly reduces cleaning time and improves work efficiency; The use of cleaning agents and water will be more scientific and reasonable; At the same time, the steam consumption is relatively small, which can achieve the goal of rational utilization of energy; Therefore, it effectively reduces the cleaning cost.
Mature PLC control system:
Years of experience accumulation have made our programs more complete, coupled with imported high-quality control components, which can ensure the long-term and stable operation of the system; The human-machine interface can shorten the training time for operators and visually display the working status of key components of the equipment; The user-friendly help interface can assist operators in identifying and processing various common fault information, in order to restore the equipment to normal status in a timely manner.
Technical parameters:
name
Simple explanation
Alkali tank
Material SUS316L, 50mm thick insulation at the top and bottom of the cone.
Acid tank
Material SUS316L, 50mm thick insulation at the top and bottom of the cone.
Hot water tank
Material SUS304, 50mm thick insulation at the top and bottom of the cone.
Clear water tank
Material SUS304, 50mm thick insulation at the top and bottom of the cone.
Concentrated acid and alkali tank
Material SUS316L, single layer.
Pneumatic diaphragm pump
Acid and alkali resistant plastic, with a flow rate of 1000L/H.
Process pump
Material SUS316, flow rate: 20m3/h, head: 36m, motor power: 5.5kw.
Plate (tube) heat exchanger
Material SUS316
filter
Material SUS304
Return pump, self priming pump
Material SUS316, flow rate: 20m3/h, head: 20m, motor power: 4kw.
Control cabinet
Stainless steel casing, control method according to requirements.
Remarks:
1. Acid tanks, alkali tanks, and water tanks mainly come in specifications such as 1000L, 1500L, 2000L, 2500L, 3000L, 4000L, 5000L, and 6000L.
2. Concentrated acid and alkali tanks mainly come in specifications such as 100L, 300L, 500L, 1000L, and 2000L.
3. Each system is equipped with 1 to 3 cleaning circuits.
4. The number of return pumps is determined based on the number and layout of the cleaned equipment.
Note: In addition to the specifications of the table series, it can also be designed separately according to customer requirements.
